Import of Calibration Data Files

The addin RS_CALIBDATA is an import filter for UniPlot to access all calibration data from the following file formats:

  • DCM (V2.0 - V1.0 not supported)

  • PACO

With this addIN you will be able to load, analyze and plot your calibration data in UniPlot. This will allow you to compare your measured data with the expected behavior of the calibration.

Note

The addin is a beta version.

Installation

Usage

  • Choose File=>Import Data to select a Dataset file.

  • Choose Type "Calibration Data File (*.dcm;*.DCM;*.PaCo)".

  • Select one or more Calibration Data files.

  • To plot the Calibration information : Choose the Type Calibration Plot (1D, 2D, 3D). If you select this type UniPlot will do the following :

    Label Type

    Action

    Single Value
    UniPlot offers to plot:

    • a single point

    • an X line threshold

    • a Y line threshold

    An axis

    Plot a 1D y/t line

    A calibration line

    Plot a 2 x/y line

    A calibration table

    Plot a 3 x/y/z surface

  • An equivalent function to display the numerical values in table is available using Calibration Table (1D, 2D, 3D).

In all the cases UniPlot will find automatically the related axis thanks to the information provided in the dataset. For best results, try to always export your axis within the dataset.

Example

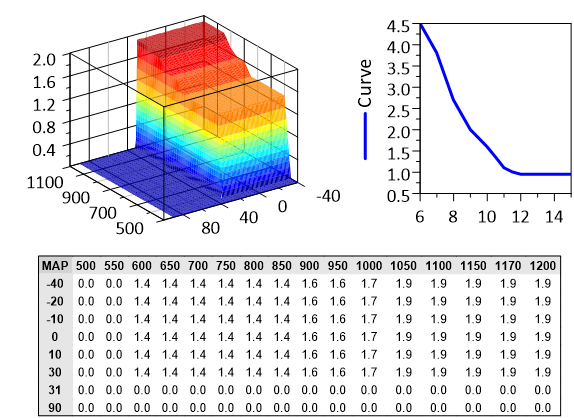

Here is a preview of what can be done with a DCM.

../../_images/addin_rs_calibdata_example.png

History

Version

Description

R2025.2

First release.
