poly_hull

poly_hull calculates the convex hull in the x/y plane.

rvIdx = poly_hull(x, y)

rvIdx = poly_hull(x, y, opt)

Return Value

rvIdx are the hull indices. In case of an error rvIdx is a string vector with two elements. The first element identifies the error, the second element is the error text.

Parameters

x

x is a vector with x coordinates. The vector must have the same number of elements as the vector y.

y

y is a vector with y coordinates. The vector must have the same number of elements as the vector x. At least 4 elements are necessary.

opt

If opt is set to 1, points on the edge of the hull will not be ignored. If set to 0 (default value) points on the edge of the hull will be ignored.

Example

* poly_hull([0,1,1,0,0], [0,0,1,1,0])
    1.0000
    2.0000
    3.0000
    4.0000
    1.0000

* poly_hull(rand(1,1000), rand(1,1000))
  443.0000
  970.0000
  939.0000
  591.0000
  526.0000
  776.0000
  584.0000
   92.0000
  536.0000
  877.0000
  580.0000
  238.0000
   50.0000
  875.0000
  338.0000
  230.0000
   44.0000
  288.0000
  243.0000
  443.0000

* poly_hull([1,1,1],[1,1,1])
2,x-poly-error
Singular Input Data (e.g. Points form a line)

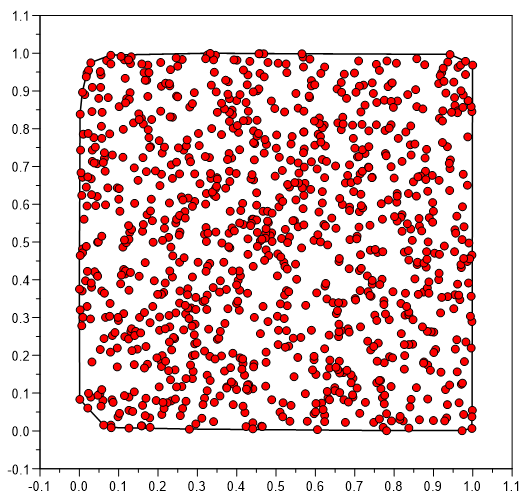

idx = poly_hull(x = rand(1,1000), y = rand(1,1000))
if (type(idx) == "string") {
   MessageBoxError("Error: " + idx[1] + "\n\n + idx[2]);
   return 0;
}
h = plot(x[idx], y[idx])
h2 = plot(x, y, h[2])
XYShowMarker(h2[3], TRUE)
XYShowLine(h2[3], FALSE)
LayerSetAxisMinMaxDelta(h2[2], "X", -0.1, 1.1, 0.1)
LayerSetAxisMinMaxDelta(h2[2], "Y", -0.1, 1.1, 0.1)
LayerShowGrid(h2[2], "X", FALSE, FALSE)
LayerShowGrid(h2[2], "Y", FALSE, FALSE)
LayerSetAxisTitle(h2[2], "X", "")
LayerSetAxisTitle(h2[2], "Y", "")
PageReplot(h2[1])

See also

poly_triangulate

This function uses the qhull algorithm see:

Barber, C.B., Dobkin, D.P., and Huhdanpaa, H.T., “The Quickhull algorithm for convex hulls,” ACM Trans. on Mathematical Software, Dec 1996. http://www.qhull.org/.
