Import of CONVERGE files

Introduction

The addin rs_converge is an import filter that enable UniPlots to import CONVERGE CFD software (https://convergecfd.com/) simulation results (*.out). Optionally, it also allows the users to import input (*.in) and echo (*.echo) files.

There are five types of output files: echo (*.echo), restart (*.rst), map (map_*.h5), cellaveraged output (*.out), and cell-by-cell post (post_*.h5).

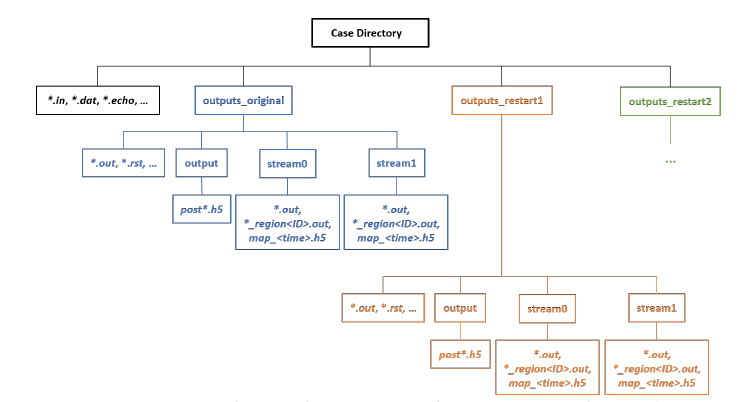

CONVERGE creates output directories for these files within the Case Directory, as shown below.

../../_images/converge-folder-structure.png

For additional information and resources, CONVERGE users can visit the CONVERGE download hub

Compatibility

The add-in is known to be compatible with the following CONVERGE versions:

  • CONVERGE 3

  • CONVERGE 4

  • CONVERGE 5

If you encounter any issues while importing a specific file, please contact us.

Installation

The installed files are located in the [UniPlot User Directory]\UniPlot\AddIn\rs_converge directory.

rs_converge.ic

AddIN UniScript File

OUT_import_filter.ic

Import filter UniScript File

IN_import_filter.ic

Import filter UniScript File

ECHO_import_filter.ic

Import filter UniScript File

rs_converge.icl

AddIN in object code

Usage

  • Start UniPlot.

  • Choose File=>Import Data.

  • Choose the type CONVERGE (*.out;*.in;*.echo).

  • Navigate to your simulation “stream” folder. (All the files present in parent folders will be eligible for import. So you may want to select out files from the “stream” folder.)

  • Select any *.out file and click OK.

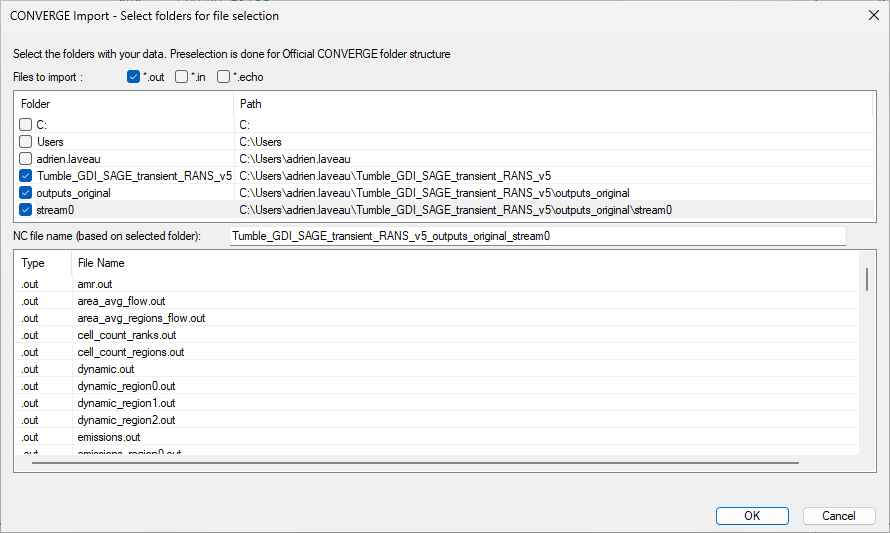

  • The UniPlot-CONVERGE import window will pop-up.

    ../../_images/converge-folder-selection-window.png

    • The window has four main elements, described in the table below.

    :header-rows: 1

    Section

    Description

    File Selection type

    Choose whether, in addition to the *.out files, you wish to import the *.in and *.echo files (we recommend working only with *.out files).

    Folder selection

    Choose the folder from which to import data. UniPlot will search for files of the selected type in the chosen folders (non-recursive search).

    Project Name

    Based on the selected folders, but can be overwritten.

    File list

    Displays the list of files and their types in the selected folder.

  • Fill in the required information and click OK. The import will begin.

Created NC-File

  • Once imported the file is available as usual in the DataBrowser. Channels are organized in the tree structure using the NC2 files group function. The structure is as follows :

    • Group name: file_type/orginal_file_name

    • Channel name : file_type/original_file_name/channel_name/[extra information] (extra information is taken from the file, such as bound ID etc…)

History

Version

Description

R2025.3

First release
