Diagram=>X/Y/Z-Axis=>TitleΒΆ

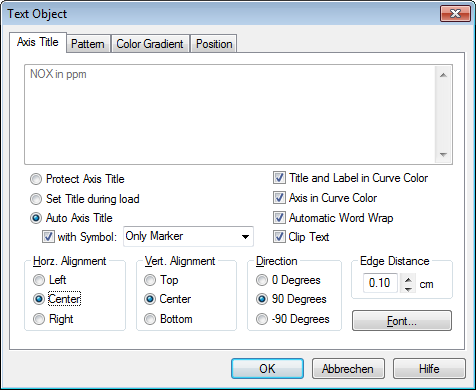

You can edit the axis title in this dialog box. The axis title of a x/y diagram can have multiple lines.

../../_images/DiagramXYZAxisTitle-en.png

You can use sub- and superscript, insert characters from the special character sets or insert lines, arrows and symbols into the text.(see Text Objects).

See Edit Object=>Text for a list of parameters.

More Options:

Protect Axis Title

If the option is selected the axis title can only be modified using the dialog box.

Set Title during load

If the option is selected the axis title will be set during the loading of a dataset. The old title will be replaced. The title will only be loaded if the option Column Title as Axis Label is set in the File=>Import Options dialog box.

Auto Axis Title

If the option is set, the axis title will be updated when a dataset is loaded or updated. The title will be created from the channel name or channel title and the unit text. The format can be set in the File=>Import Options dialog box. The elements will be read from the data source information map Dialogbox=>Datasource-Information.

The y-axis title can contain the names of multiple curves. Only unique names will be displayed. For example, if the curve speed in rpm is loaded 3 times from different data files, the title will only show the title of one curve.

A legend symbol can be displayed in front of the axis title.

with Symbol

If this option is selected and the option Auto Axis Title is selected as well, a curve symbol is displayed in front of the axis title. For the option Only Marker a black marker is displayed if the curve are displayed with a marker. The option Legend Symbol displays the symbol used in the legend.

Title and Label in Curve Color

Use the curve color of the first 2D dataset to set the color of the y-axis title and label.

Axis in Curve color

Use the curve color of the first 2D dataset to set the color of the y-axis.

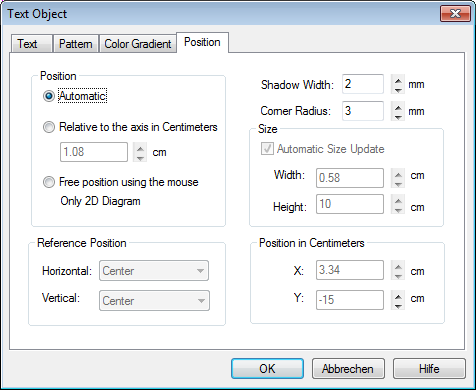

The axis title position can be set in the Position dialog sheet.

../../_images/DiagramXYZAxisTitelPos-en.png
