Diagram=>X/Y/Z-Axis=>LabelΒΆ

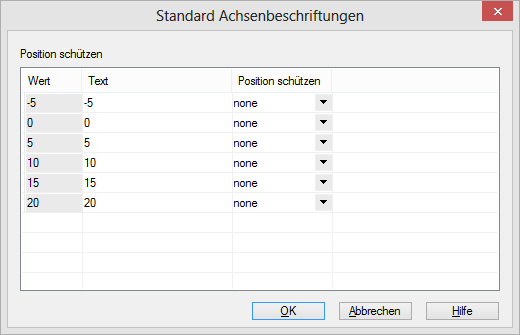

Axis labels can be edited in this dialog box.
- Value
- Lists the axis label values in the left column. Text labels in the right column can be edited.
Comment
If you rescale the axis, the axis labels will be changed as well.
To avoid this lables can be marked with #b or #e. The two characters must be placed in front of the text.
Value | Meaning |
---|---|
#b | The label string will stay at the position counted from the beginning |
#a | the same as #b. |
#e | The label string will stay at the position counted from the end. |
Example
To print the axis unit (Nm) as the second last label, the #e has to be placed in front of the string:
#eNm
