Data=>Edit 2D-Dataset Coordinates¶

With this function you can edit the y-coordinate of single points. To edit a point you must complete the following steps:

Select a 2D dataset.
Choose Data=>Edit 2D-Dataset Coordinates.
Position the mouse cursor on a datapoint. If the cursor is above a point the cursor will change to an arrow.
Press the left mouse key and drag the point in a y-direction to the new location. The y-value will be displayed as a tool tip and in the status bar.
Before exiting the edit mode you might want to edit other points of the active dataset as well.
To exit the edit mode click outside of the diagram or choose Data=>Edit 2D-Dataset Coordinates again.

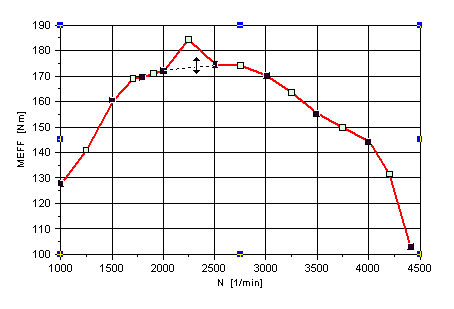

Data_EditPoint
