Import of CAS files

Introduction

The addin RS_CAS is an import filter for UniPlot to access CAS data files. CAS is an combustion analysis system of the company FEV Motorentechnik GmbH (www.fev.com) and MTS Powertrain Technology Division (www.mtspt.com).

Installation

  • Select Tools=>Add-In Manager.
  • Click on the Add-In CAS: Import of CAS Data Files.
  • Click OK. Exit UniPlot and restart UniPlot.

The installed files should now be located under C:\Program Files\UniPlot Software\UniPlot\addin\rs_cas.

Readme.html This documentation
rs_cas.ic Script
rs_cas.icl rs_cas.ic library

Configuration

Some options can be setup for this add.

  • Select Tools=>CAS Configuration.

Usage

  • Start UniPlot

  • Select File=>Import Data. The following dialogue is displayed:

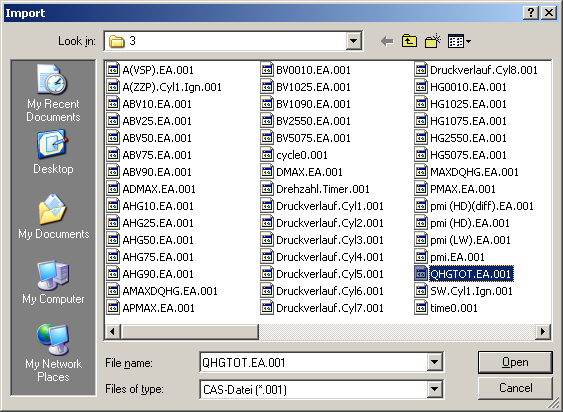

    ../../_images/cas_selecttest.png
  • Select the type "CAS-Datei *.001".

  • Select a CAS file. Only one file should really be selected. be selected. It does not matter which of the files you select. The name is only needed to select the directory.

  • The following dialogue is displayed:

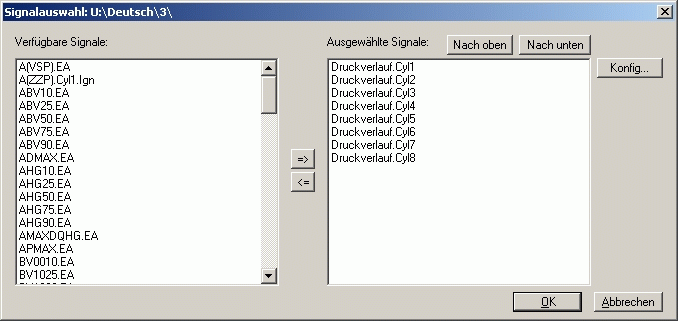

    ../../_images/cas_main.png

    In this dialogue you can now select the desired channels. Via the button Config you can open the following dialogue box open:

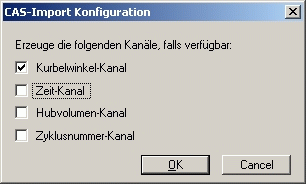

    ../../_images/cas_configdlg.png

    In this field you can select which x-axis channels are to be transferred to the result file. result file.

  • In the dialogue box Signal selection, press the button OK to convert the data.

Generate NC-Data

The NC file contains the data of the selected channels of the CAS measurement. The name of the NC file is formed from the last directory name.

History

  • 08.12.2023: Added a configuration dialog to select x-axis generic name.
  • 16.06.2003: Channel names that contained a space in the name could not be imported.
  • 11.06.2003: Channel names that contained a @ character in the name could not be imported.
  • 11.06.2003: Added channel selection dialogue.
  • 16.12.2002: First version
